Header Manufacturer: APC
Brand: APC
Product Line: APC
Smart-UPS X Model: 3000 Rack/Tower
LCD Bundled with: APC UPS Network Management Card AP9631
Country Kits: Canada, United
States Packaged Quantity: 1
General Subcategory: UPS
Product Type: UPS Networking
Remote Management Interface: Ethernet 10/100, RS-232,
USB Remote Management Protocol: SNMP 1, SNMP 2c, HTTP, SSH, Telnet, SNMP 3, SSH-2, HTTPS
Expansion Slots Expansion Slots: 1 (total) / 0 (free) x SmartSlot
Interface Provided Interfaces: 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45
Cable Details Cables Included: Power cable 8 ft, Serial cable – external, USB cable – external
Software Type: Drivers & Utilities Power Device
Form Factor: Rack-mountable / external
UPS Technology: Line interactive
Voltage Provided: AC 120 volt
Voltage Provided Margin: ± 5%
Frequency Provided: 47 – 53 / 57 – 63 hertz UPS
Output Waveform: Sinewave
Power Provided: 2700 watt
Power Capacity (VA): 3000 volt ampere per kilogram
Voltage Required: AC 120 volt
Input Voltage Range: AC 70 – 153 V
Frequency Required: 50/60 hertz
Input Connector Type: Power NEMA L5-30
Input Connector Qty: 1
Output Connector Qty: 10
Switchover Time: 2 millisecond
Surge Suppression: Yes
Surge Energy Rating: 540 joules
Power Device Features: LCD display, Automatic Voltage Regulation (AVR), Hot-swappable batteries, LED indicators, Audible alarm Power Output Connectors Details
Power Output Connectors Details: 3 x power NEMA 5-20, 6 x power NEMA 5-15, 1 x power NEMA L5-30 Battery Run Time (Up To): 6 minute (time unit)
Load Type: At full load
Recharge Time: 3 Hours Run Time Details Run Time (Up To): 18 min at half load, 6 min at full load UPS
Batteries Qty: 1
Battery Technology: Lead acid
Miscellaneous Color: Black
Color Category: Black
Included Accessories: Tower stand Rack
Mounting Kit: Included
Height (Rack Units): 2
Compliant Standards: CSA, UL 1449, NOM, REACH, FCC Part 15 A, EN 50091-2, TUV, EN55022 Class A, UL 1778, VCCI Class A, RoHS, BSMI Dimensions &
Weight Width: 7 inch
Depth: 19 inch
Height: 17 inch
Weight: 85.19 lbs Dimensions &
Weight (Shipping) Shipping Width: 23.1 inch
Shipping Depth: 24.9 inch
Shipping Height: 13 inch
Shipping Weight: 105.23 lbs
Environmental Parameters Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Humidity Range Operating: 0 – 95%
Sound Emission: 55 dBA
Compatibility Compatible With:
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SUA2200R2X180 Trusted Protection.

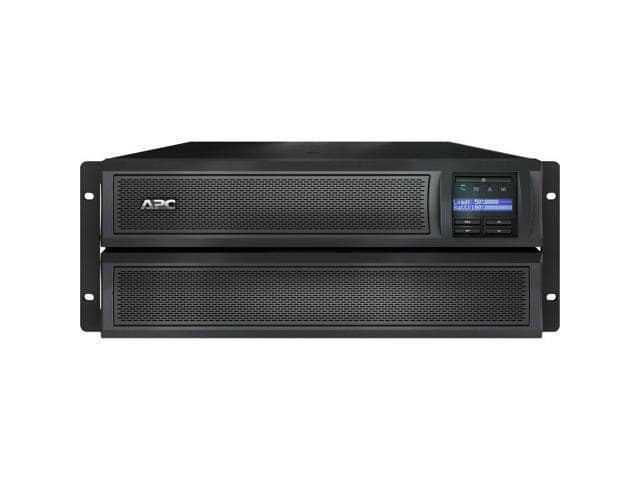

Simplified Management. Perfect for distributed IT. Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. Scalable Battery Runtime for Power Outages With 10 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Save Time with Easy Monitoring and Management Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). Convenient Installation The SMX3000LVNC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations.
Package contains: UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable & Web/SNMP management card High Efficiency This 3000watt ups offers an grreen mode to ensure you are operating at the highest level of efficiency while its smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Additional Specifications Predictive battery management provides an estimated date of when battery replacement is recommended. Batteries are user-replaceable.
